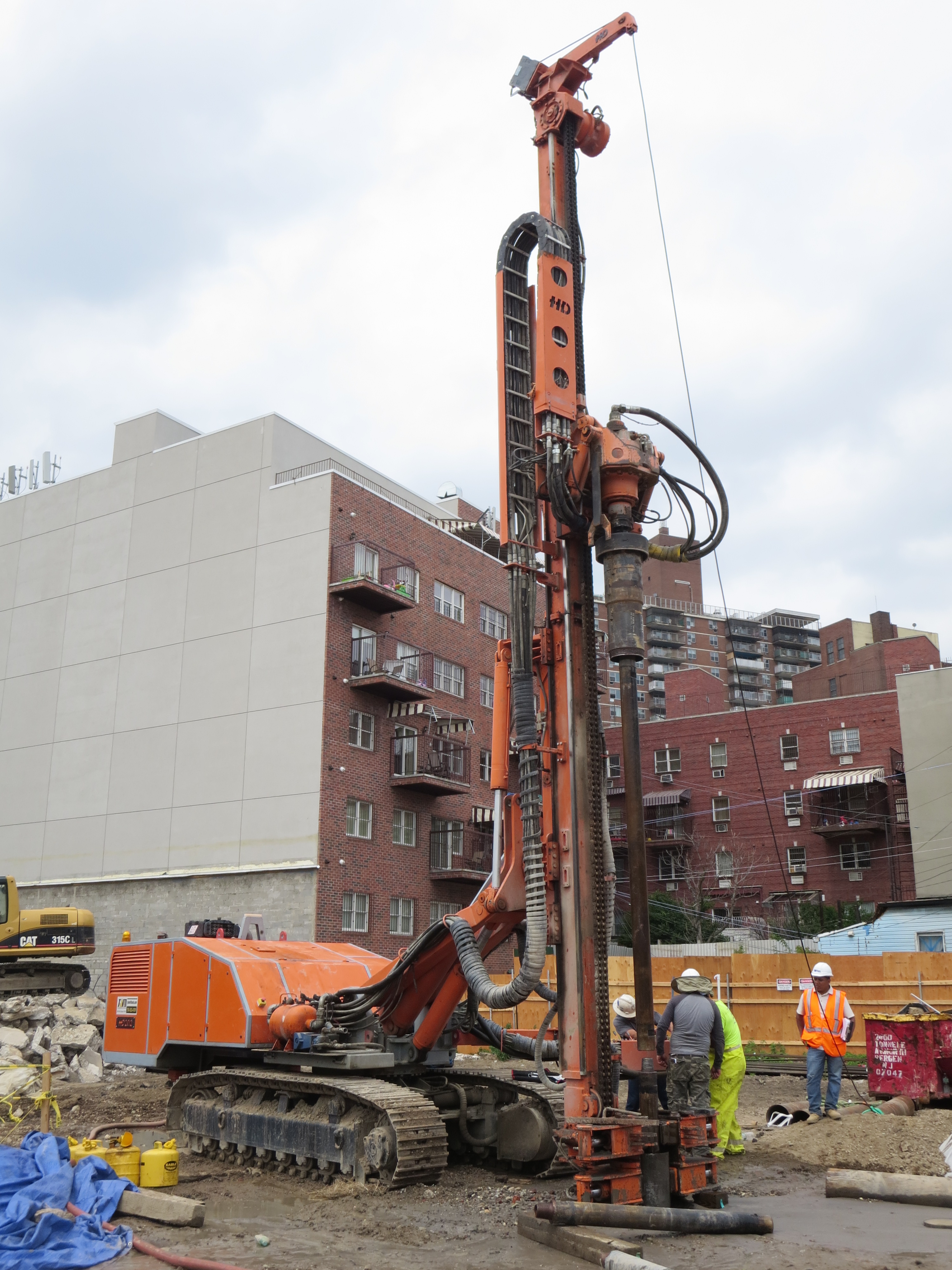

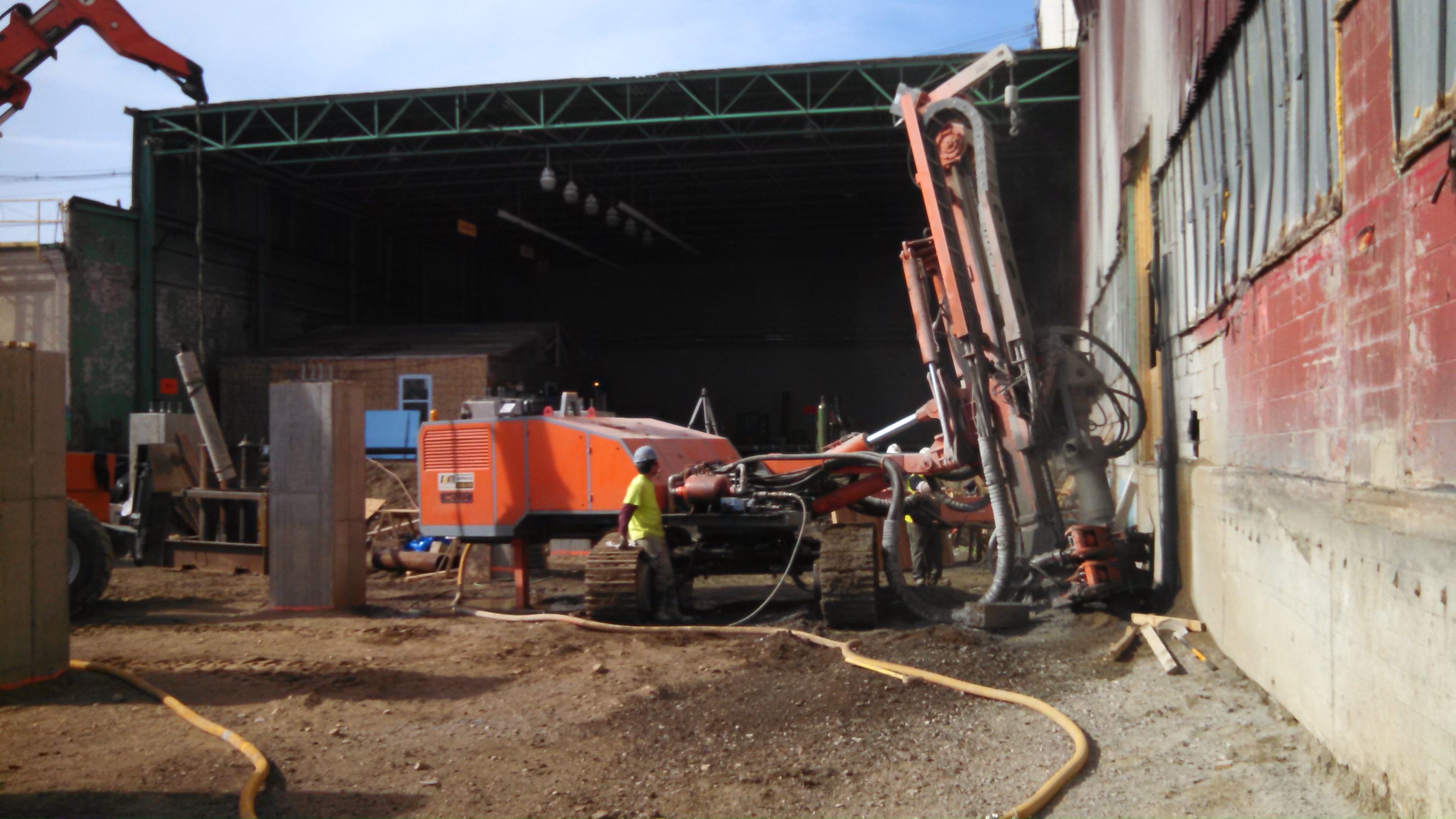

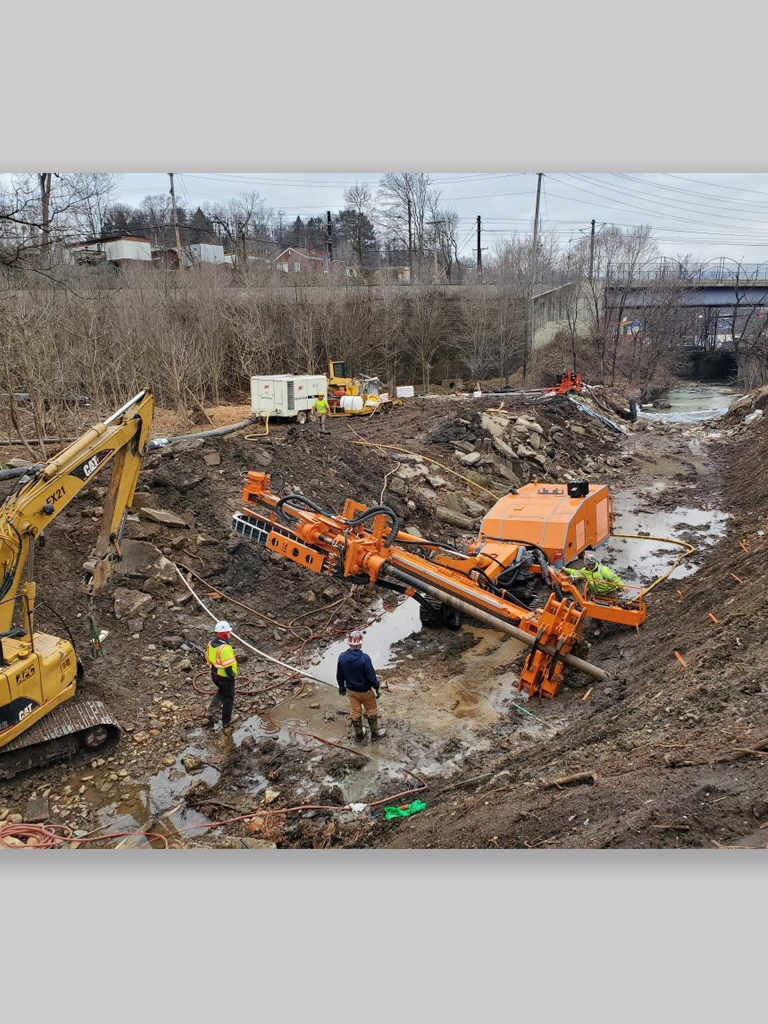

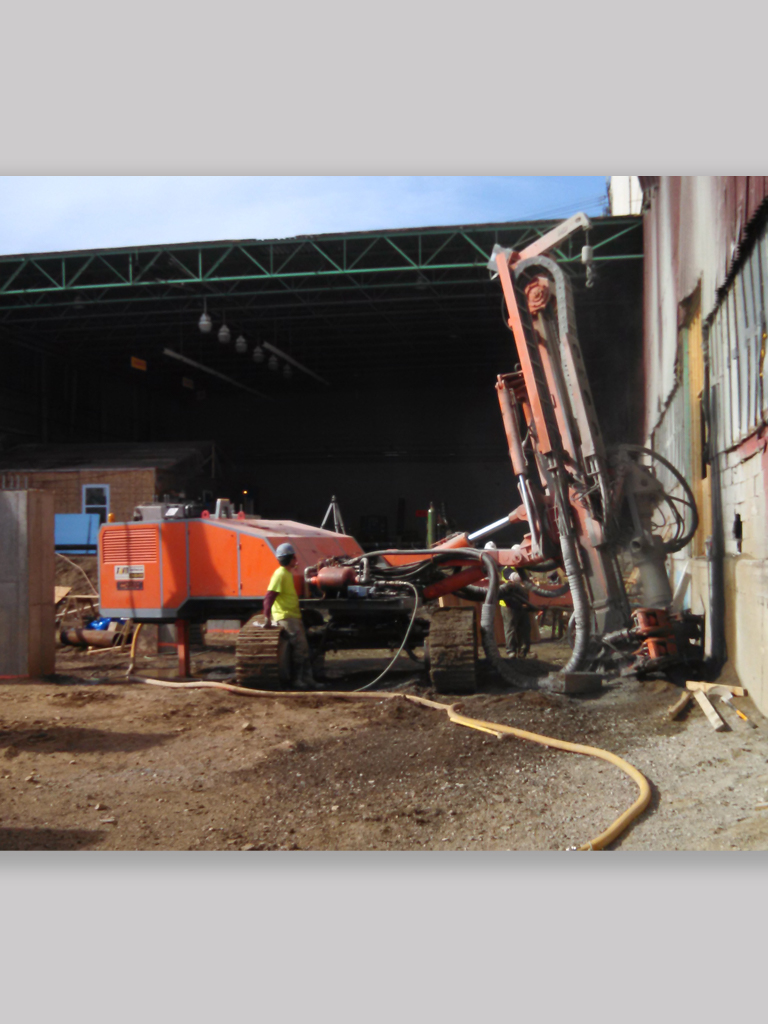

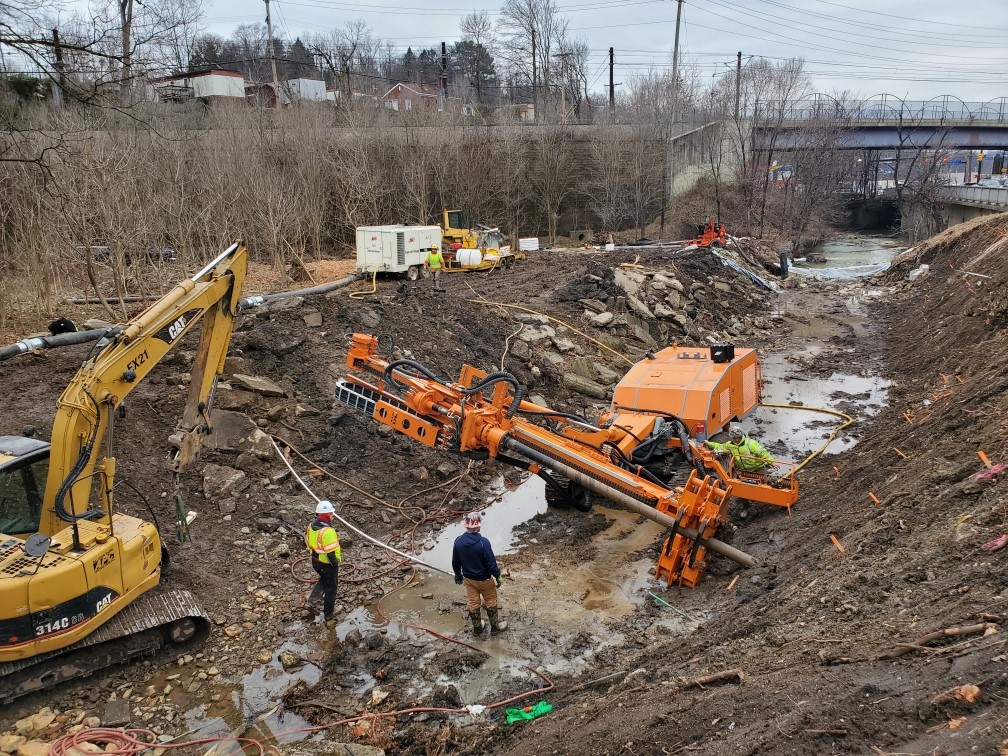

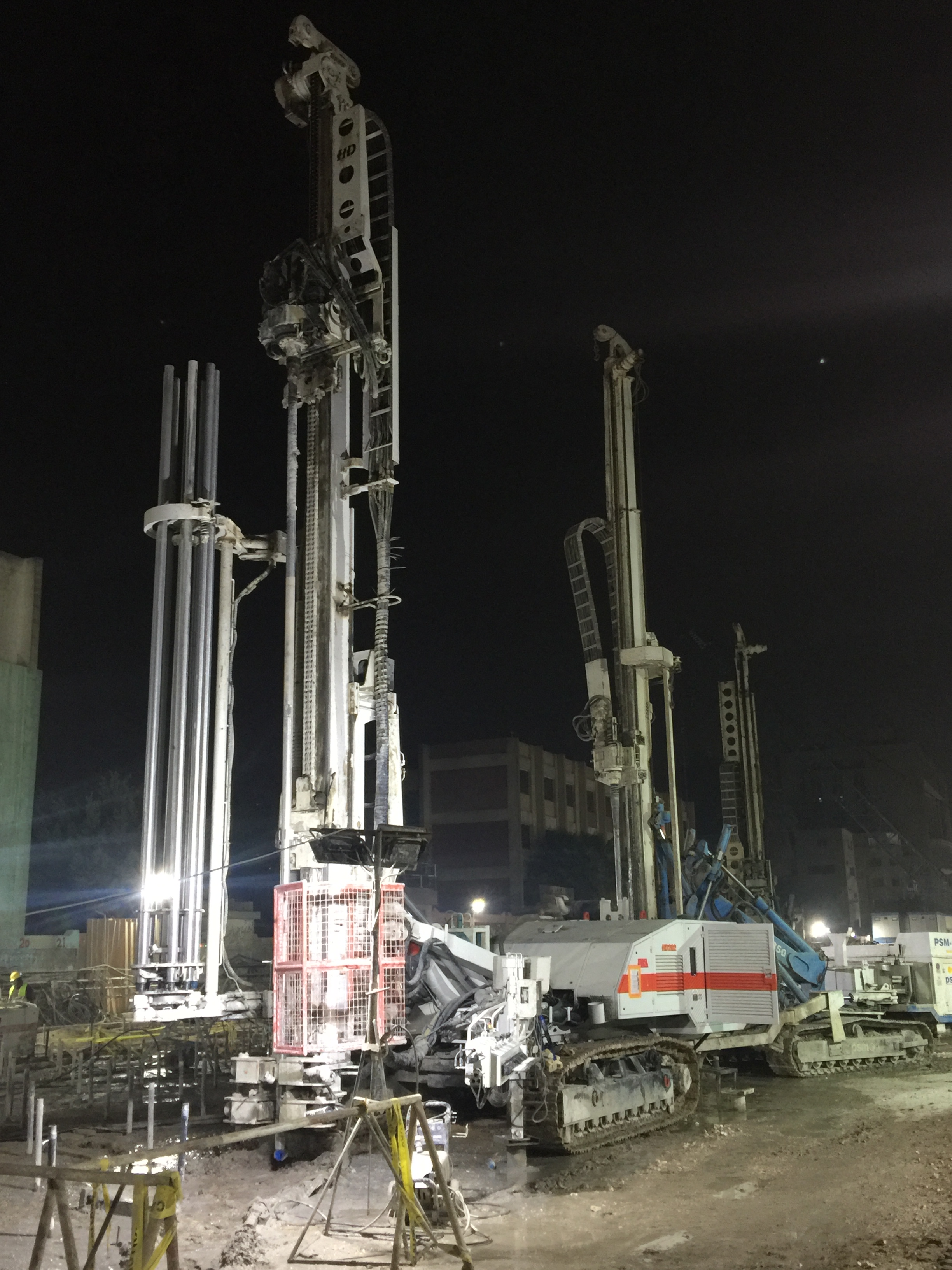

The HD202 is a heavy-duty and versatile drill rig, powered by 204 HP engine, with super high pull-back (15 tons) on the drill mast. This fully hydraulic crawler drill is built to be sturdy, simple and reliable, and with high drilling performance. The 360 degree turn-table enables the rig to manoeuvre well in difficult working environments and confined areas, furthermore to quickly engage to different drilling positions. With the simple and yet efficient hydraulic system, the rig can be mounted with high-torque rotator, powerful drifter, for various drilling requirements. It is designed and built for different large diameter drilling applications, heavy-duty drilling environments, as well as anchor drilling applications.

- Weight = 21.5 tons (47,300 lbs)
- Power = 149 kw (200 HP)
- Rotator max. torque = 40,000 Nm (28,920 ft.lb)
(Equipped with HR4000 rotator)
- Feed max. force = 15 tons (33,000 lb)
- Pullback max. force = 15 tons (33,000 lb)

Applications :
* Drifter drilling
* DTH drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
