Introduction

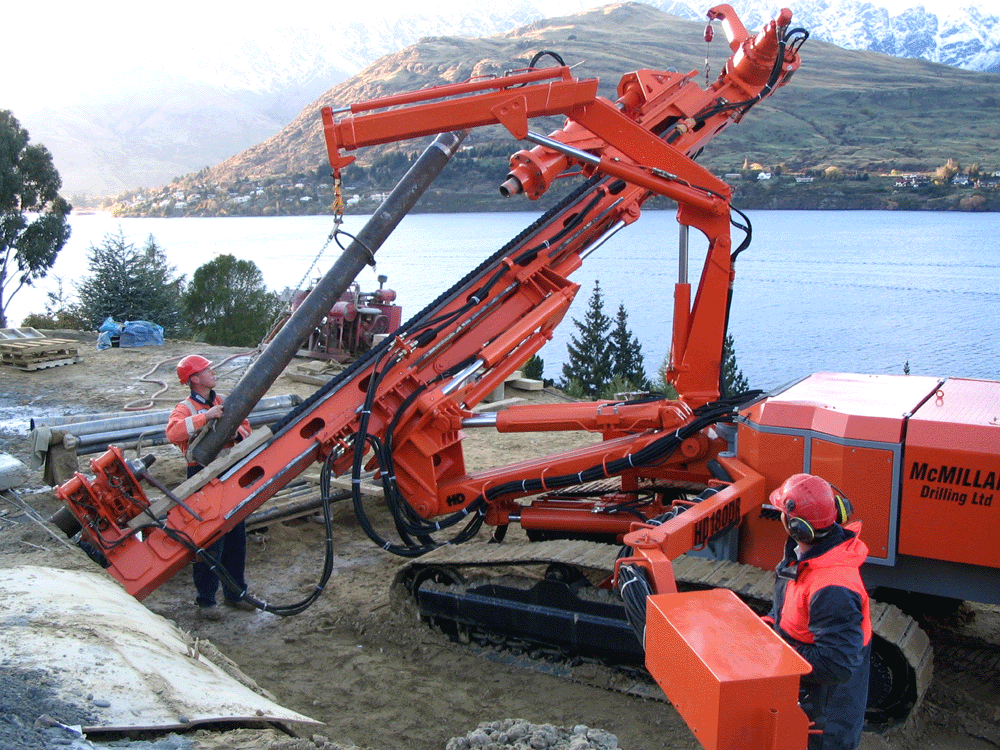

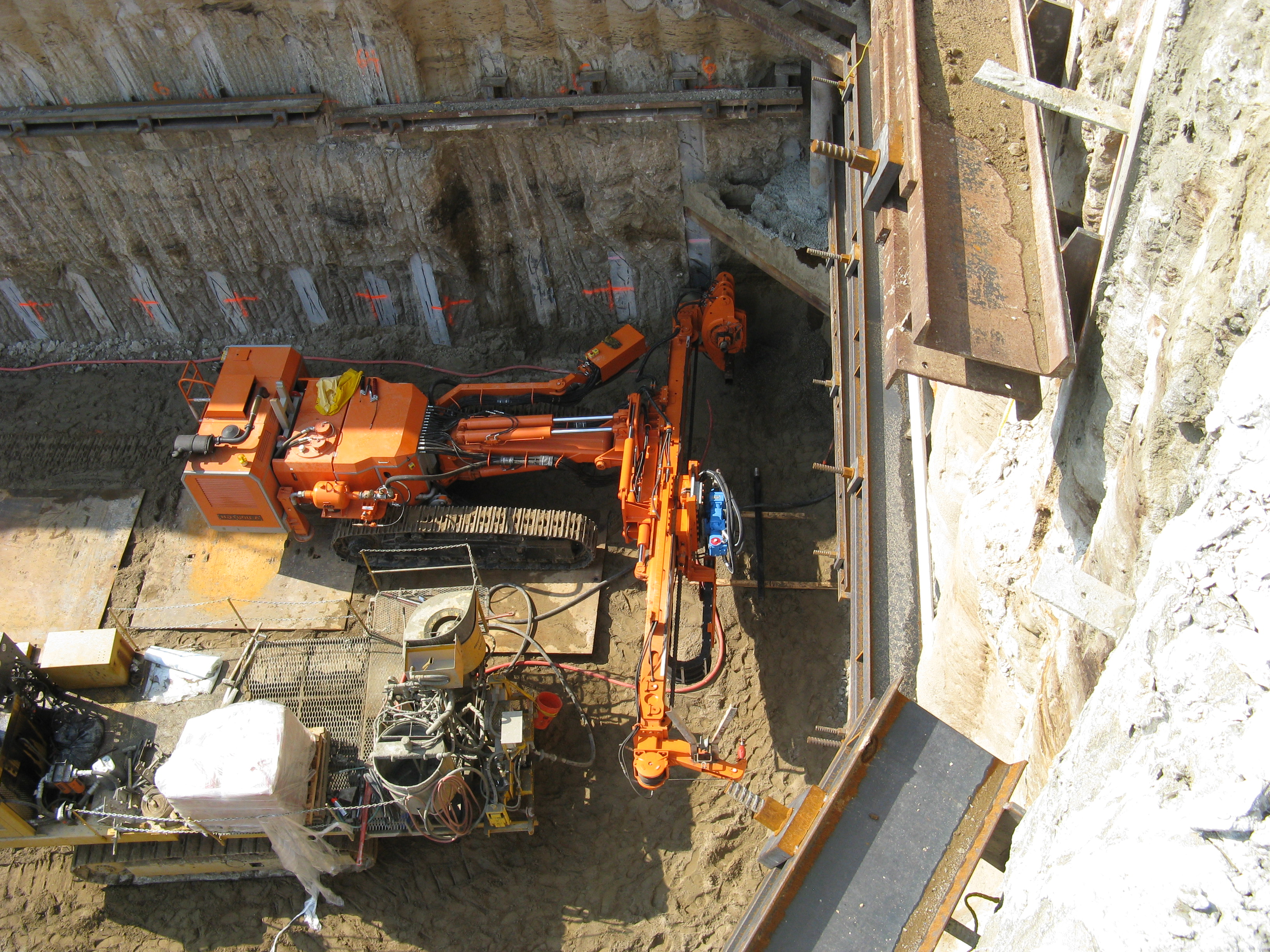

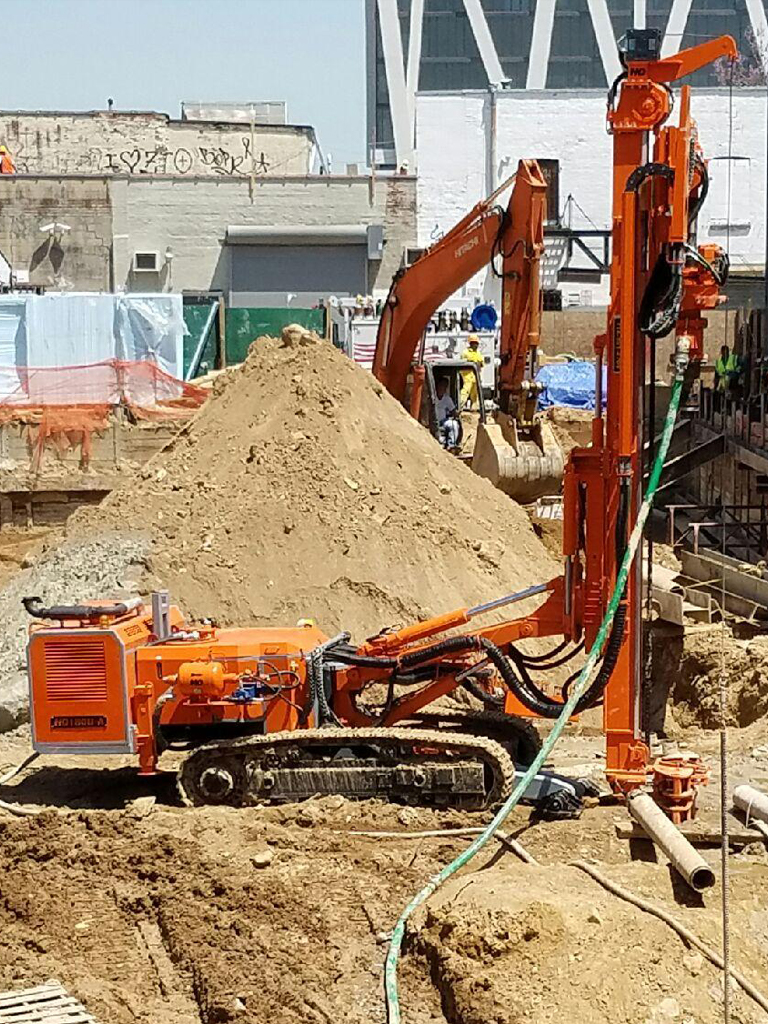

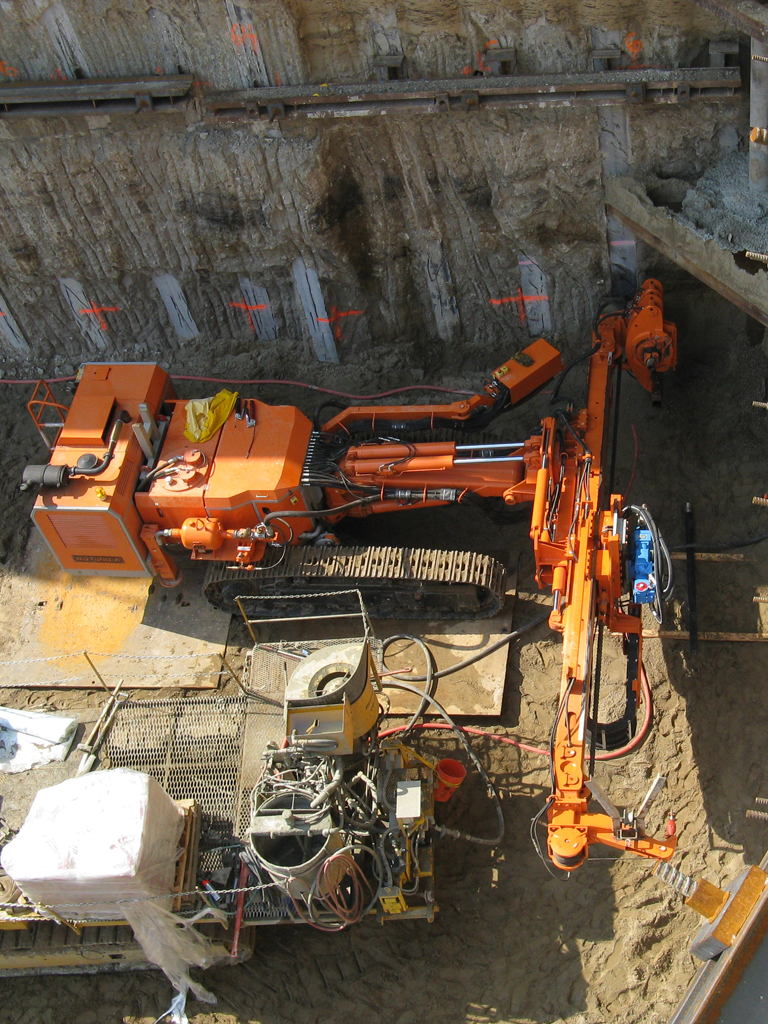

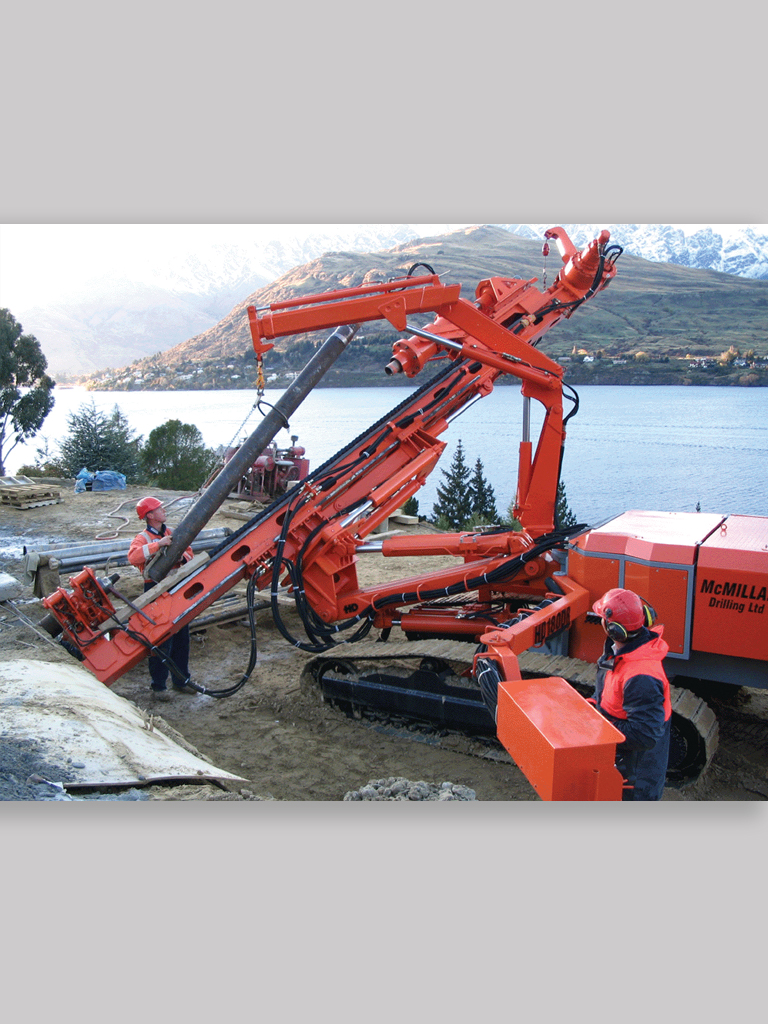

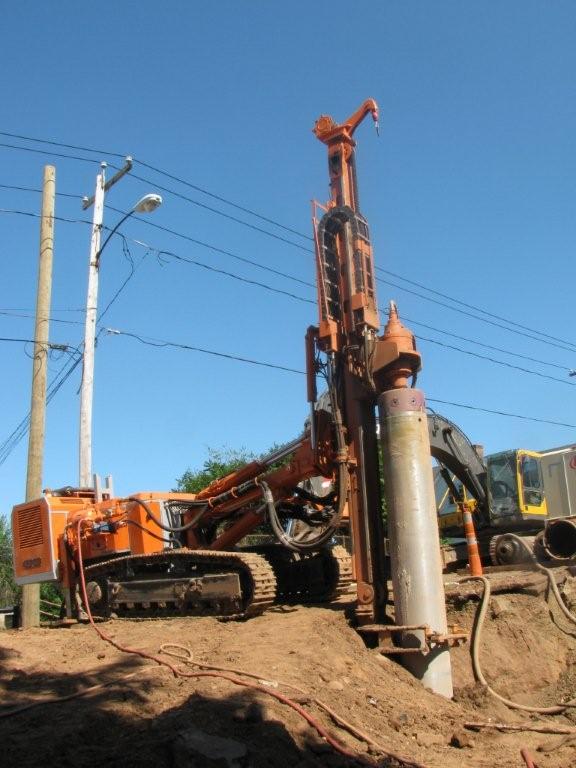

The HD180B-A is designed with swing boom and super high pull back (15 tons) on drill mast for the heavy duty drilling work. The features allow it to work in limited access job site. The high-torque rotator (up to 4000kgm torque) make it suitable for heavy duty anchoring, micropile and DTH drilling application. A service crane can be mounted onto it.
- Weight = 18 tons (39,600 lbs)
- Power = 152 kw (204 HP)
- Rotator max. torque = 40,000 Nm (28,920 ft.lb)
(Equipped with HR4000 rotator)
- Feed max. force = 9.2 tons (20,240 lb)
- Pullback max. force = 15.7 tons (34,540 lb)
Applications :
* Double Head Drilling
* Drifter Drilling
* DTH Drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
* Coring
